Constant Velocity Joint
Constant Velocity Joints or curriculum vitae joints become part of the driveline on a front wheel drive or 4 wheel drive automobile. The CURRICULUM VITAE joint’s result rate amounts to the input rate no matter the angle of thejoint The initial variation of the curriculum vitae joint is a sphere kindjoint It is a adaptable joint that permits the wheel outside of the resort to guide, and also at the very same time, it permits the automobile’s suspension to proceed with its up-down movements as the automobile actions. The CURRICULUM VITAE joint is generally discovered on the external end of the driveshaft– signing up with to the wheels– while the internal drive shaft – attached to the transaxle– generally has a various type of curriculum vitae joint called a tripod joint.
The Reason
The factor for utilizing a CURRICULUM VITAE joint on completion of the driveshaft attaching to the wheel is due to the fact that the external joint can experience an operating angle of approximately 50 levels when the front wheels are guided. The joint on the internal end, seldom needs to run at greater than a 20 level angle, so a various kind of curriculum vitae joint can be made use of there.
The Developer
Very little is understood about the life of Alfred Hans Rzeppa. He lived from January 23, 1885 till at some time in January1965 He functioned as a designer for Ford Electric motor Firm, and also perhaps his most significant payment at Ford was his development of a variation of a constant-velocity Joint, or Curriculum Vitae joint in1926 He additionally enhanced the style 10 years later on, in1936 The information of these innovations can be checked out in united state licenses 2,010,899 and also 2,046,584, which can be discovered online.
Constant Velocitiy Joint
The Technicians

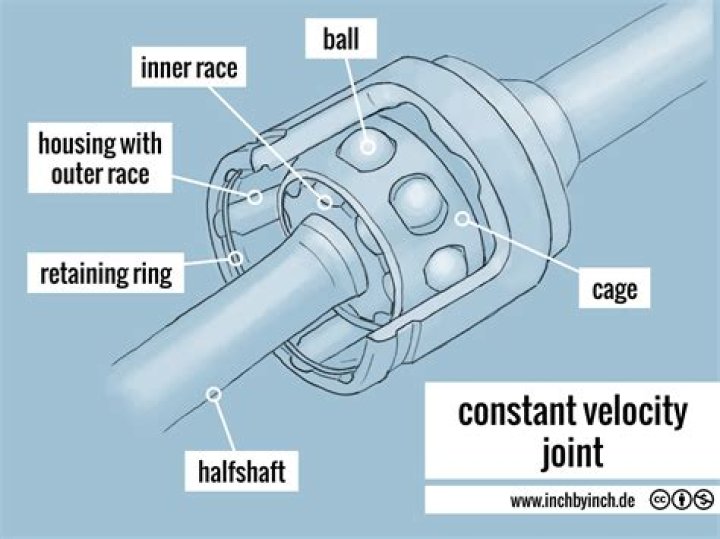

The Rzeppa joint is made with a external and also internal race, which is one turning item inside an additional turning item. In the Rzeppa Curriculum Vitae joint, 6 round rounds are positioned in between the external and also internal races. The rounds are maintained in placement by openings in a cage setting up that fits in between the external and also internal races. The Rzeppa joint is created to make sure that the rounds constantly bisect the operating angle of the joint.
If you recognize just how a bevel equipment functions, you have a respectable suggestion of just how a Rzeppa joint functions, just rather than tilted equipment teeth transferring the torque, the rounds press versus their tracks in the external and also internal races. This permits the instructions of the shaft to be altered with nearly constant velocity no matter the joint angle.
Upkeep
Besides being extremely adaptable, curriculum vitae joints need little upkeep past examining the rubber “boot” covering them for fractures. If the boots are split, roadway dust can rise right into the system, creating wear, and also if enabled to proceed, feasible failing of the curriculum vitae joint.
The Alternatives
A less complex kind of joint, called a Universal Joint, is made from 2 U-shaped joints close with each other, oriented at 90 levels per various other and also both attached to a go across shaft or a sphere. While this permits excellent flexibility of motion when wheels are guided, with extremely dogleg angles, U-Joints can create the driveline to shake. While U-joints are understood to be extremely durable, contemporary curriculum vitae joints can last equally as lengthy if they are appropriately preserved.
” data-medium-file=” data-large-file=” data-lazy-src=” srcset=” information: image/gif; base64, R0lGODlhAQABAIAAAAAAAP/// yH5BAEAAAAALAAAAAABAAEAAAIBRAA7″/ >
Almost every drive shaft and also drive axle is fitted with a minimum of 2 adaptable joints that allow engine and also transmission torque to be transferred at an angle. Preferably, torque would certainly be transferred in a straight line, yet this would certainly cause an incredibly harsh flight.
Rather, the suspension and also guiding system creates a comfy drive, as do front-wheel drive and also front-wheel guiding. This system additionally needs adaptable drive shafts to fit motion. Without adaptable joints, drive shafts would not last long, and also front-wheel drive would certainly be difficult. Below’s a better check out just how joints like the constant velocity joint job.
Constant Velocity or Variable Velocity
There are numerous joints that can aid transfer torque at an angle, yet couple of certify as a constant velocity joint, or CVJ. The global joint or U-joint you generally discover on drive shafts can transfer torque over tiny angles, yet better rates and also angles swiftly reveal the reality that it isn’t providing constant velocity.
The global joint transfers a typical rate to the contrary end, yet changes rate every 180 levels of turning. This cyclic axial velocity variant produces a resonance, and also the better the angle, the even worse the resonance. Maintaining these angles reduced and also utilizing a 2nd global joint countered by 90 levels creates smoother procedure, yet can not get rid of axial velocity variants and also resonance entirely.
On the various other hand, a real constant velocity joint can transfer torque with absolutely no angular velocity variant and also near-zero resonance at better angles than global joints. Early CVJ styles consisted of the dual cardan joint (2 consolidated U-joints), the Weiss joint, the tripod joint and also the Tractajoint The Rzeppa joint is usually discovered in front-wheel-drive lorries at the wheels, given that they enable shaft angles approximately 54 levels. Curriculum vitae joints can be discovered on drive shafts and also drive axles in all kinds of lorries due to the fact that they create little resonance.
Usual Constant Velocity Joint Issues
Rubbing is the most significant adversary the constant velocity joint needs to encounter, even with its stamina and also security. This is why Rzeppa and also tripod curriculum vitae joints are loaded with oil and also secured in adaptable rubber curriculum vitae boots. In time, direct exposure to the aspects brings about CVJ boot fractures, which can enable crucial lubricating oil to get away. Extra seriously, fractures can enable water and also dust to get in the joint, which speeds up rust and also wear.
However, if used boots are disregarded or a boot is torn instantly, all the oil might leakage out, considerably enhancing wear. Used constant velocity joints are usually determined by a clicking audio that quickens while you transform. You might additionally really feel a resonance that goes and also comes at specific rates if the wear is severe.
Thankfully, normal upkeep examinations need to expose dripping CVJ lubricating substance, the initial indication of used boots. At this moment, merely changing the old boot and also lubricating substance need to suffice to recover the axle. If the CVJ has actually begun shaking or clicking, nevertheless, the only treatment is substitute. Below’s a substitute pointer: make sure to utilize a brand-new axle nut and also torque it appropriately to secure the wheel bearing.
Look Into all the drivetrain components readily available on NAPA Online or depend on among our 17,000 NAPA AutoCare areas for regular repair and maintenance. To find out more on constant velocity joint upkeep, conversation with a educated professional at your neighborhood NAPA VEHICLE components shop.
